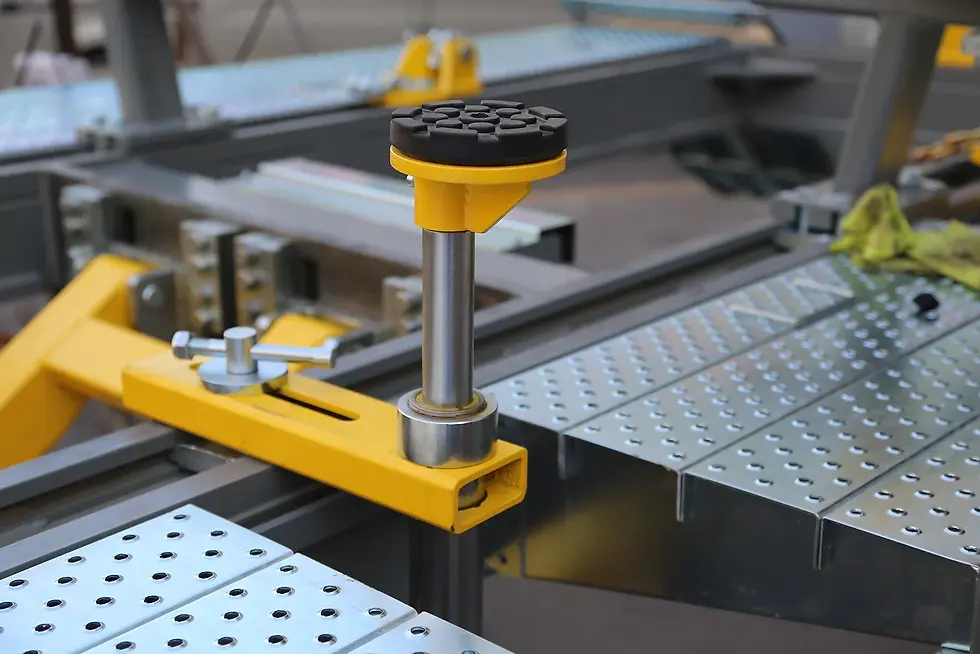

QuickJig Rack 5000/5500/6000

QuickJig Rack 5000/5500/6000

This System is available in 3 different lengths with option of a bench up to 6 meters in length!
​
With a single 360 degree pulling tower (option of a second tower) offering 10 ton pulling force anywhere around the jig, this versatile jig can also be used as a scissor lift, lifting from ground up to 1190mm.
​
Supplied with various pulling clamps, hooks and tools with an electro hydraulic pump, the QuickJig Rack system can be operated quickly.
​
The tilting function and drive on boards allow the vehicle to be supported whilst the vehicle is clamped up for repair.

  • Quickjig Accessories

    We have a range of Quickjig accessories avaliable.

    Click me to view our range of Quickjig accessories

  • Technical Specification

    • FRAME LENGTH: 5000/5500/6000mm

    • FRAME WIDTH:1170mm

    • LIFTING CAPACITY: 4000kg

    • PULLING POWER: 10 Ton

    • MAX LIFTING HEIGHT: 1190mm

    • VOLTAGE: 415V
